Electronic News Gathering Vehicles

ENG Vehicles, following our coach-building process, have been designed to provide quick, secured and full intergraded solutions, offering cost-effective construction which can be rapidly installed and set up to be operational within minutes upon arrival.

Perfectly used for outside Electronic News Gathering (ENG) transmitting directly to Broadcaster’s control room, live video feeding news events, emergency or disaster situations.

The design of Telescopic-pneumatic mast (varying in different heights), with the MW link mounted on motorized pan tilt head with remote control, has proven this to be an ideal system to support the live broadcasting.

Each Vehicle is fully enclosed, with spacious, climate controlled interiors for comfort and efficiency. The enclosed design provides security and protection on electronics and equipment and storage space for spare parts, cables and other components during transport.

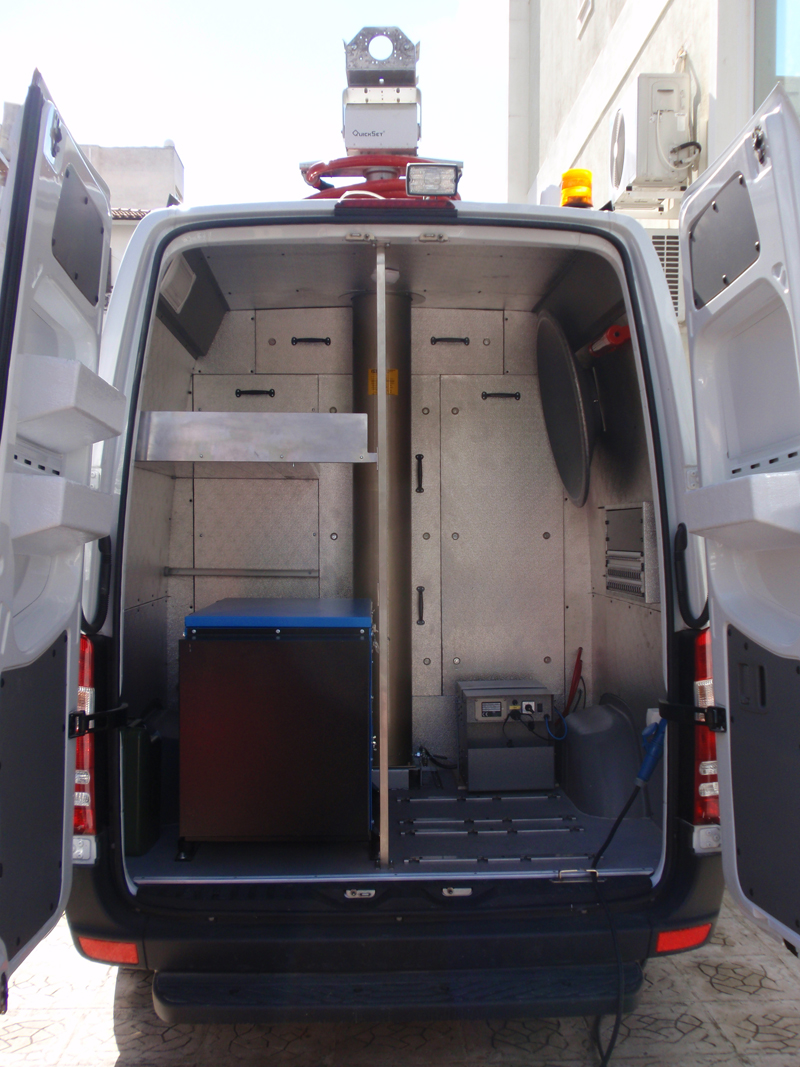

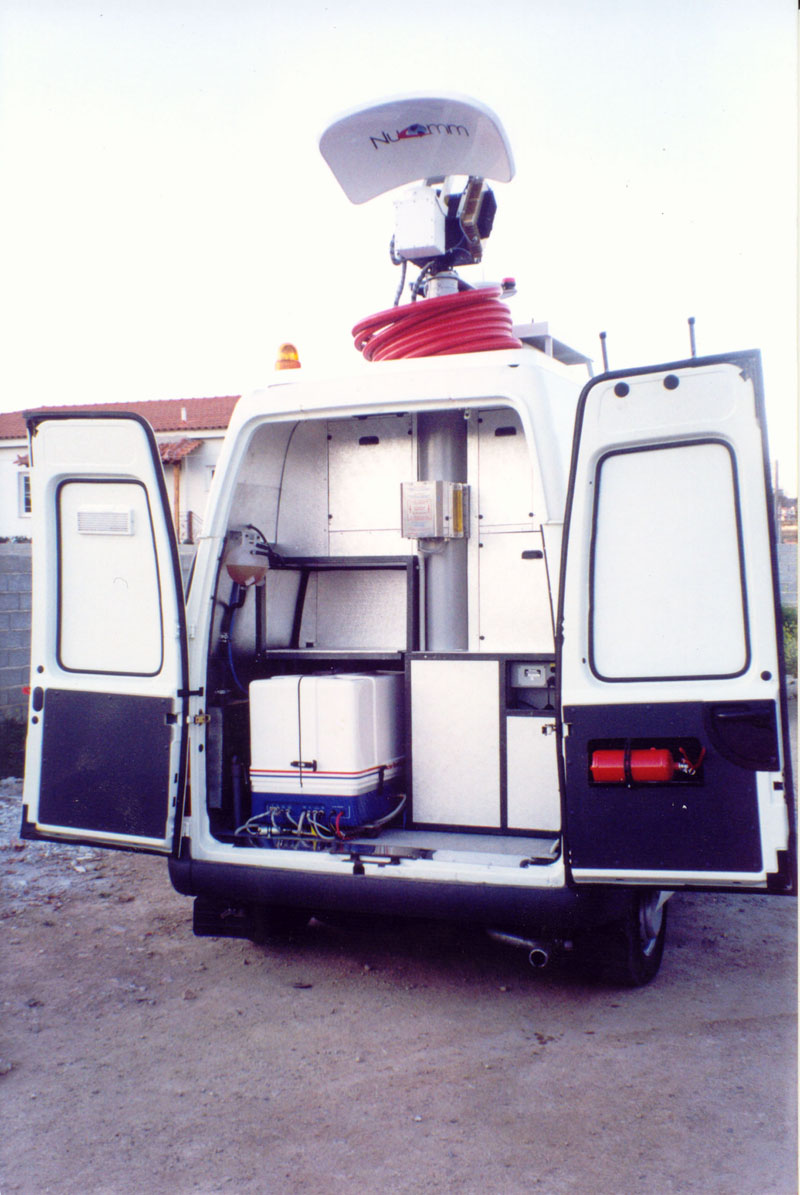

The interior accommodates two full isolated areas. The compact diesel generator provides power for all Electronic and non electronic equipment plus HVAC system and lighting. Platform on the roof of vehicle provides convenient access to inspect Link systems and cables. Outriggers quickly stabilize the vehicle at site.

The Vehicles are expertly integrated with complete electrical wiring, generator systems, HVAC, pneumatic mast for Link, and electronics racks to support your choice of Broadcast Equipment.

All Vehicles are custom engineered by PTS’s experienced team, to accommodate your requirements and specifications. The selection of the specific vehicle’s chassis and size is dependent upon the equipment size and payload requirements. Regardless of your equipment needs, all controls and major equipment elements are designed for user friendly operation, placed for easy access and maintenance and thoroughly tested for their reliability. The Vehicles delivered are ready for operation providing extra support and training for operators.



Study & Design

Each vehicle is customized according to your demands and its coach-building is based on detailed mechanical, AC/DC electrical and electronics CAD drawings. Our engineers use documented processes to guide you from the definition of your requirements, to the design and construction of a solution.

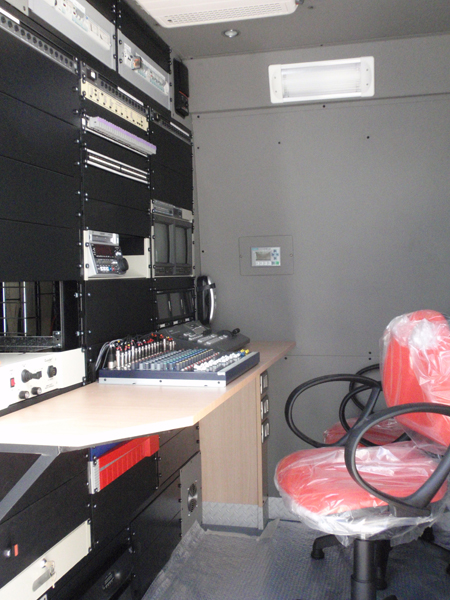

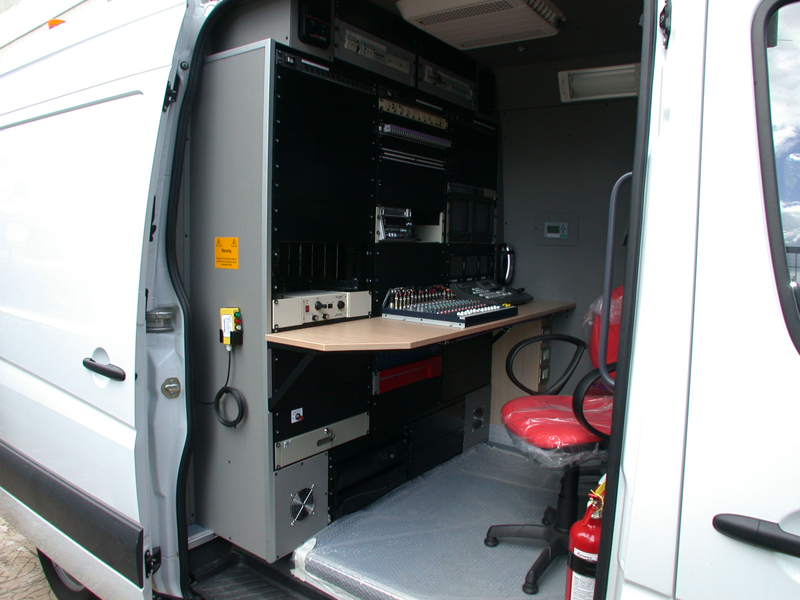

Operation Area

The operation area is separated form the power area at the back of the vehicles and is fully insulated (thermal & sound). Heating, ventilation and air-conditioning system, are designed so that we can ensure that the equipment and the operators are working under proper conditions. Special attention has paid, to achieve an ergonomically operation area with easy access to controlling and monitoring systems

Monitoring Systems

Internal and external security systems for intruder alarm, smoke detectors, over temperature detectors, and stowage alarm systems to warn the operator of antennas, jack, mast deployment and door closures.

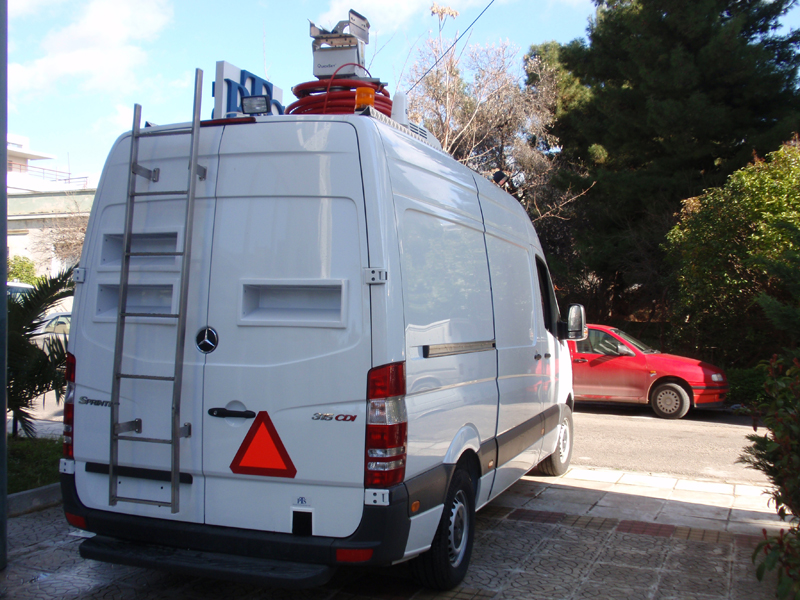

Mast System

The Telescopic (Pneumatic) mast varies on type, depending on the desired antenna height and the workload at the top.

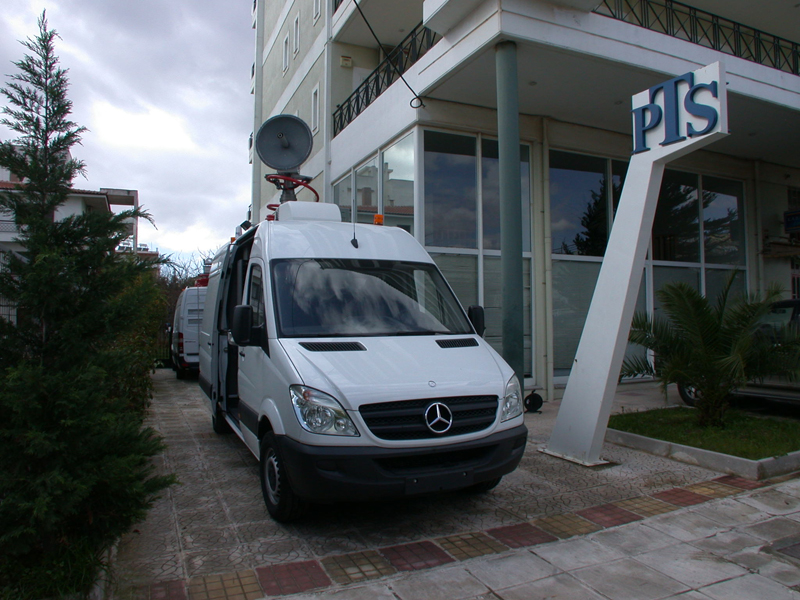

MW Link

The MW Link is mounted constantly at the top of mast and is fully remote controlled by a 3-axis motorized Pan Tilt Head, ensuring 360o Azimuth range and up/down mechanical tilt.



STANDARD FEATURES



· Steel framed pre-painted enclosure

· Insulated walls and ceiling panels

· Antistatic GRP flooring

· Ceiling HVAC

· Telescopic (Pneumatic) Mast (up to 15 m).

· Diesel generator (silent type-Up to 5 KVA)

· Extra Fuel tank (up to 80 Lit)

· Outside Socket for connection tocommercial power source

· Grounding lug for connection to external ground



· Complete 220V AC electrical system& 12V DC inverters

· Control panel to monitor electrical system

· Interior lighting, 220V AC and 12V DC

· Vehicle's stabilization system(Electrical Outriggers)

· Work bench and tool cabinet

· Fire extinguisher
